ARC SUPPERSSOR
When sparks occur,the special electronic circuit on this machine works automatically and cuts high frequency immediately to suppress arcs and minimize damage to electrodes and materials.Alarm lamp also works simultaneously.

JAMMING PREVENTION DEVICE
Equipped with frequency stabilizer and high frequency magnetic leakage suppressor.This device prevents leakage of electromagnetic radiation to avoid jamming other electrical instruments such as televisions and radios,etc.

SAFETY DEVICE
When the current exceeds its limits,the overload relay functions automatically to protect oscillation tubes and rectifier.Frequency deviation caused by misoperation is also prevented.

HIGH POWER WELDER
Using a specially designed mechanism,the maximum pressure of foot pedal can rech up to 400KGS so as to meet most operating conditions.The high quality components make these machines work very smoothly and precisely.

EASILY ADJUSTABLE TUNER
Output power can be adjusted at the tuner according toelectrode size and material thickness.In addition,other control devices and special electrica circuits have cut down required welding time considerably to raise the machine productivity.

ADJUSTMENT FOR THE DISTANCE ON THE MACHINE HEAD
Adjust the distance the machine head if practical as the mould's size and height are different.Save working load while processing accuracy can reach up to 98%.

OIL PRESSURE PRESSURE INSTALLATION
The machine dispose pressure adding installation of oil pressure too.it can regulate the pressure reducing valve of oil pressure according to use condition(0kg-45kg),and it is good for the operating worker to reduce working load and improve the quality of H voltage product.The control part of oil pressure electrical equipment don't provide H circle oil pressure in succession turning and artificial controling.To change the operating mode,it can change the voltage processing handicraft greatly.

APPLICATION RANGE
Shoes,trademark,rain canvas,sand beach chair,portfolio,hand bag,sand beach bag,stationary,nameplate,vehicle cushion,sunshade board,costume embossing

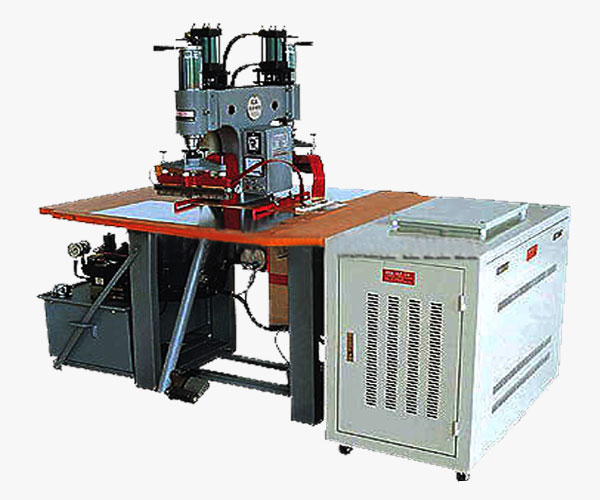

Model：GL-8GT/YJ(GL-8000FAC)
H.F.output Power:8KW
Oscillation Frequency:27.12MHZ
Power Supply:AC220/380/415V 3φ
Input Power:15KVA
Qscillation Tube:7T69RB
Rectifier:Silicon Rectifier
Max pressure(kg):1200
Max Gap of Electrodes(mm):170
Press Strokes(mm):60/80/100 Adjustable 3 gears
Lower Electrode Size(mm):350X680/400X800
Operation mode:Pedal/Oil pressure
Net Weight(kg):530
Gross Weight(kg):580
Packing measurement(mm):1970(L)X1140(W)X1970(H)
